Steam Rail Motor diagram, 1905

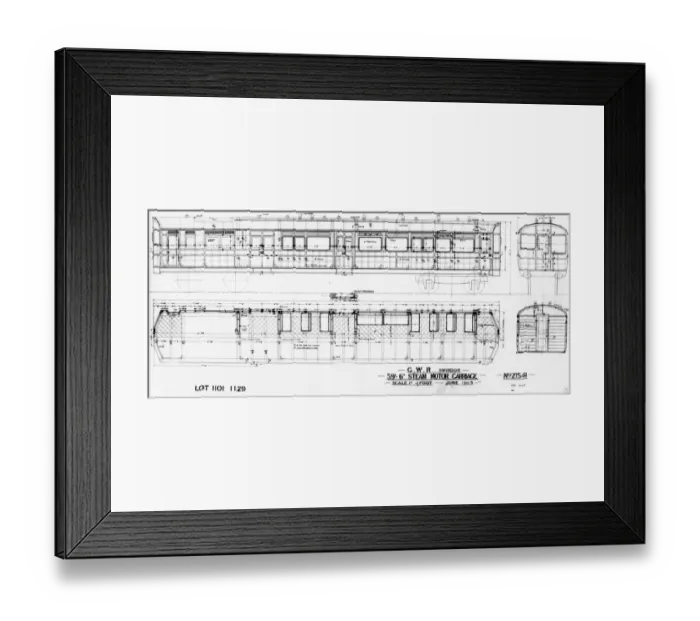

This diagram was drawn in June 1905. It was for a GWR steam rail motor that was to be built in 1906. It was built to diagram Q, lot number 1101, and included numbers 73 to 80

Media ID 14623902

© STEAM Museum of the GWR

Carriage Drawing
